Outdoor LED Advertising Screen For Outdoor Digital Advertising Systems IP65 Waterproof Front Maintenance Screen P3.91 Concert Led Screens Commercial Led Display Screen
Dettagli:
| Luogo di origine: | Cina |
| Marca: | LEDKING |
| Certificazione: | CE FCC ISO |
| Numero di modello: | P3.91 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 10 |
|---|---|
| Prezzo: | $567/PC |
| Imballaggi particolari: | custodia in compensato |
| Tempi di consegna: | 15 giorni |
| Termini di pagamento: | T/T |
| Capacità di alimentazione: | 10 pezzi 15 giorni |
|
Informazioni dettagliate |
|||
| Dimensione del pannello: | 250 mm ((W) * 250 mm ((H) | Densità dei pixel: | 65410 punti/m² |
|---|---|---|---|
| Specifiche a LED: | SMD1921 | dimensione del mobile: | 1000mm*1000mm |
| Materiale: | Mobile in ferro impermeabile | Guida IC: | ICN 2153 |
| Evidenziare: | Outdoor LED advertising screen IP65 waterproof,P3.91 concert LED display screen,Commercial LED display front maintenance |
||
Descrizione di prodotto
Outdoor LED Advertising Screen
Professional outdoor LED display designed for building facade billboards with front maintenance access and waterproof iron cabinet construction. Ideal for stage applications and high-visibility advertising.
Key Features
- Front maintenance access for easy servicing
- IP65 waterproof rating for outdoor durability
- High brightness (4000-4500cd/m²) for clear visibility
- Wide viewing angle (170°/120°)
- Long lifespan of 100,000 hours

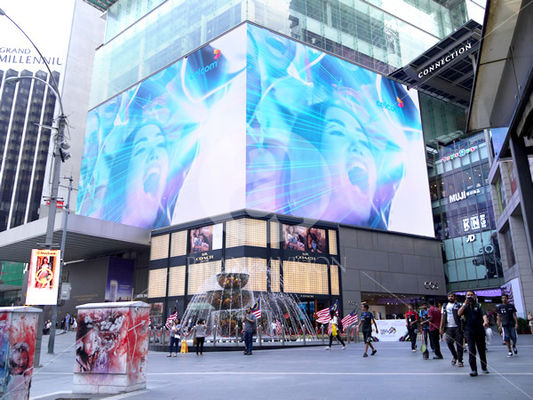

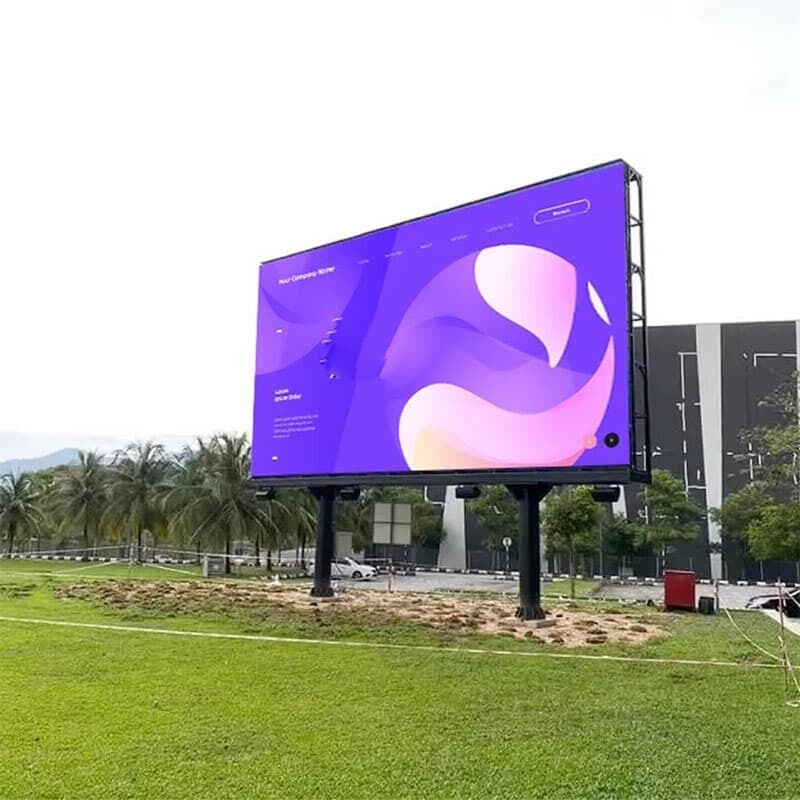

- Suitable for building facades and stage applications
Module Specifications
| Parameter | Value |
|---|---|
| Panel Dimension | 250mm(W) * 250mm(H) |
| Pixel Pitch | 3.91mm |
| Pixel Density | 65410 dot/m² |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD1921 |
| Pixel Resolution | 64dot * 64dot |
| Max Power Consumption | 22.5W |
| Panel Weight | 0.6KG |
Cabinet Specifications
| Parameter | Value |
|---|---|
| Cabinet Size | 1000mm * 1000mm |
| Cabinet Resolution | 255dot * 255dot |
| Quantity of Panels | 16pcs |
| Hub Connecting | HUB75-E |
| Material | Waterproof Iron Cabinet |
| Maintenance Method | Front Service |
| Best Viewing Angle | 170°/120° |
| Screen Power Supply | AC110V/220V - 5V40A |
| Max Power Capacity | 1100 W/m² |
| Average Power Consumption | 450W/m² |
| Panel Weight | 50KG |
Technical Specifications
| Parameter | Value |
|---|---|
| Driving IC | ICN 2153 |
| Scan Rate | 1/S |
| Refresh Frequency | 3840 HZ/S |
| Brightness | 4000-4500cd/m² |
| Life Span | 100,000 Hours |
| Display Color | 4096 * 4096 * 4096 |
| Contrast Ratio | 4000:1 |
| Control Distance | <100M |
| Best Viewing Distance | 3-30M |
| Operating Temperature | -10°C ~ 45°C |
| Operating Humidity | 10-90% |
| IP Protective Index | IP65 |
Product Images
